OVERVIEW

Dramatically improve rear-end grip at speed with our 300mm chord, swan neck wing. The wing and full aero kit were designed in CFD to greatly improve the vehicle's performance around the track.

The wing alone has the ability to dramatically reduce lap times. Through back-to-back testing, we saw a reduction of 2.5 seconds at Thunderhill and 3.3 seconds at Laguna Seca on a relatively stock GT4 at only 4 degrees angle of attack with one of our customers. The Verus GT4 swan neck wing installs like the OEM wing; with no permanent modifications to the car necessary.

Construction on the rear wing is the same as seen in high-end Motorsports; which is how the wing only weighs a mere 8 lbs.

The uprights are CNC machined from 6061-T6 aluminum and were FEA analyzed to ensure strength was kept high while weight was minimized.

Note: 718 GT4 will not accept the supplied hatch stop. Currently working on a revised 718 unit. However, multiple customers have ran with the OEM hatch stop without issue.

WHAT IS INCLUDED

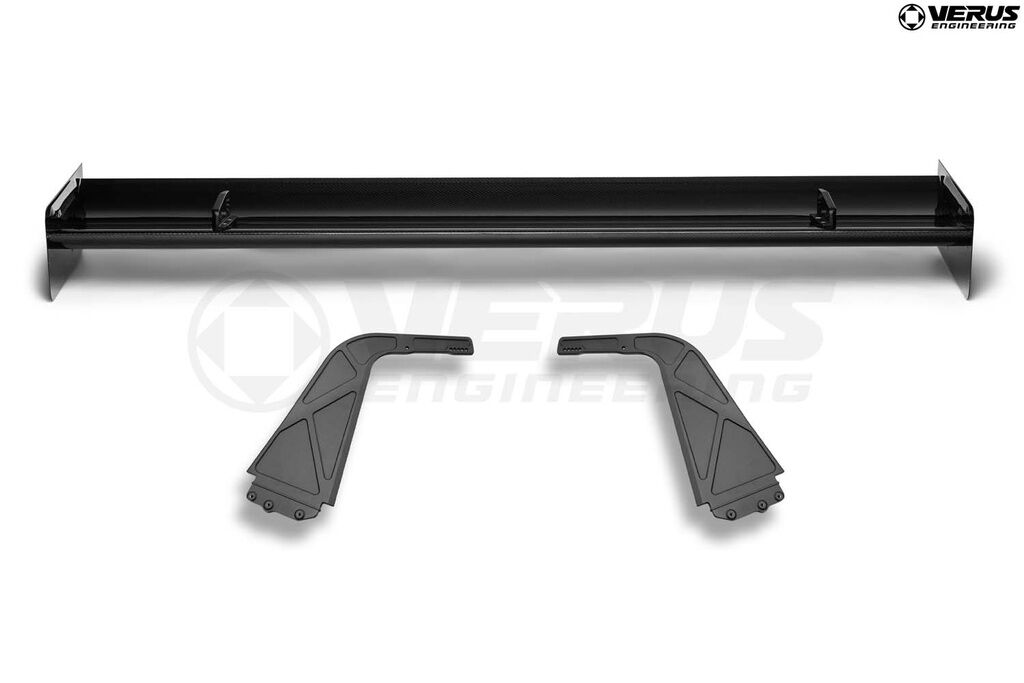

• Carbon Rear Wing, 300mm Swan Neck

• Carbon Vented Endplate (2)

• Billet Swan Neck Mount (2)

• Billet Swan Neck Upright (2)

• Billet Trunk Beauty Plate (2)

• Gurney Flap

• 3M VHB Double-Sided Tape, Gurney Flap

• Trunk Strut

• Double-Sided Tape, Beauty Plate (2)

• Double-Sided Tape, Upright Bolt Cover (2)

• Hardware Kit, Includes All Hardware Necessary for Install

INSTALL AND DATA

981 INFORMATIVE PACKET

PDF LINK

718 INFORMATIVE PACKET

PDF LINK

INSTALL MANUAL

PDF LINK
