These products are widely used in the top motorsport series, winners in GT-racing and top touringcar racing series. Equipped with our TTX-tech, the shock absorter keeps the pressure in balance, so all you need to focus on is the track ahead.

GENERAL FEATURES

> TTX, a true twin tube desin for cavllation free damping performance.
> 2.way fully independent rebound. and compression adjustment.
> Aluminum high strength light-weight products.
> Designed to be feasible for popular wheei sizes, clearance for many options.
> Tested and valiated for R oompound tyres
> Springs ordered seperately
> Rebuildable
> 2 year imited warranty.

FRONT FEATURES

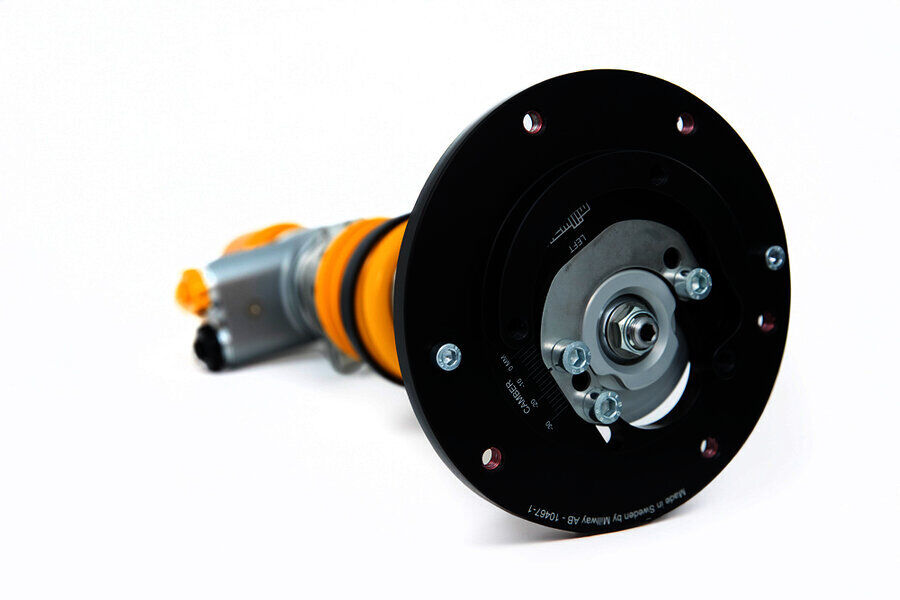

> Aluminum high strength, light-weight compact design MePherson strut.
> Through rod design, for better response and driver feedback
> length adjustable, available to adjust ride-height wthout affecting suspension travel
> Use with fully adjustable Camber and Caster top mounts, with spherical bearings,Special designed by Ohlins & Millway
> Adjustable drop links with uniball
> Upgradeable to 3-, 4 & 5 way adjustable inciuding blow of valve.

REAR FEATURES
> Aluminum high strength, light-weight compact design shock absorber
> Separate spring preload adjuster.
> Possible to upgrade to coilover
> Clevs des ign rear aluminum top mounts with spherical bearings.
> Upgradeable to 3 or 4way adjustable

ADDITIONAL PARTS
Front top mounts 05926-22 Supplied as pair with adjustable drop links.
Rear  top mounts 05926-12  Supplied as pair.

Springs

• Front spring rate  140N/mm
• Rear spring rate    220N/mm
• Helper Spring front 7.5 N/mm
• Helper Spring rear   7.5N/mm

OHLINS ADVANCED TTX ADJUSTABLE SUSPENSION KIT

Code : BMV MU21

Type Kit :  Advanced with TTX shock absorbers

2-WAY Fully independent rebound and compression adjustment

Upgradeable to 3, 4 & 5 way adjustable including blow off valve.

Compatibility :  BMW M3 M4 (F80-F82) 2014-2020
