LAPTORR FRONT FENDER COOLING/WIDE for F82-M4 - DRY GLASS-FIBER / 520-2941-DEGF is on backorder and will be shipped as soon as it arrives.

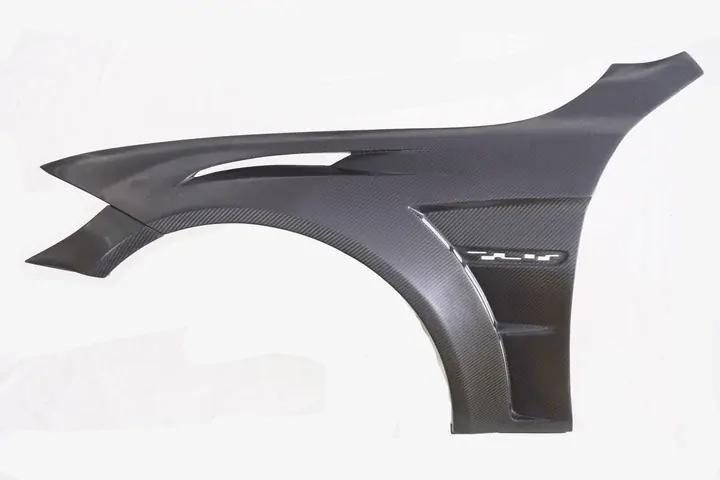

LAPTORR Front Fender Cooling/Wide for F82-M4

Applicable model

BMW F82-M4 Coupe
BMW F83-M4 Convertible
　

Product Configuration

Front Fender Cooling/Wide Left/Right Set
Front Bumper Cover Left/Right Set

DRY CARBON　

520-02941-DC

Carbon Prepreg/Autoclave Process Manufacturing Process
A prepreg sheet of carbon fiber impregnated with epoxy resin is vacuum-formed in a mold and then cured by heating and pressure in an autoclave process.
Since it is made from the same material and manufacturing process as racing cars, it is lightweight and strong.
The coloring that makes the best use of the carbon fabric can produce an original style.
OEM side markers can be used.
Unit weight
Fender ：Approx. 830g
Bumper cover ：Approx. 70g

About surface finish
Since we prioritize lightweight, the product is not gel-coated or clear-coated as it is pulled from the mold, there may be pin holes or resin irregularities left.



　

DRY EPOXY GLASS FIBER　

520-02941-DEGF

Epoxy glass fiber prepreg / autoclave process Manufacturing method
This is a manufacturing method in which prepreg sheets of glass fiber impregnated with epoxy resin are vacuum-formed in a mold and then cured by heating and pressure in an autoclave.
The material is different from dry carbon, but the manufacturing process is the same. It is lighter and tougher than conventional fiberglass (FRP), and the vacuum molding process has achieved a sharp shape.
OEM side markers can be diverted.
Unit weight
Fender : approx. 1,300g
Bumper cover : approx. 110g

 　

Widening for cornering force

As a base tuning to increase the cornering force of BMW M4, it is essential to install tires/wheels of the same size through all four wheels.
With the suspension tuning to match this, it can be finished to a cornering machine with very high fighting power.
In ASSIST F-M4 Maou, YOKOHAMA ADVAN A052 295/35-18 tires and 18" 11.0J wheels were used to make the front fenders wider so that the same size tires and wheels could be installed on all four wheels. The front fenders were modified to be wide enough to fit YOKOHAMA ADVAN A052 295/35-18 tires and 18" 11.0J wheels, but we have added a cooling function to the product based on this shape.
Therefore, please note that this fender is designed to fit the suspension, caster, and camber of the ASSIST F-M4 Maou, so it will not fit the tires of all vehicles.
The width widened from the stock fender is 25mm on the data, but it is not the actual vehicle measurement, so please use it as a reference only.
Ride height adjustable shock absorber (QUANTUM or INTRAX)
Direct-wound spring inner diameter Φ65mm
Camber/Caster adjustable upper mount
LAPTORR front lower arm/adjustable
If ADVAN A052 can be installed, ADVAN A050, POTENZA RE71RS can also be installed.
ASSIST F-M4 Maou page

　
Cooling in front wheels

Ducts are provided above and behind the front wheels to vent hot air in the front wheels.
Proper modification of the wheelhouse cover is required to achieve this effect.
