OVERVIEW

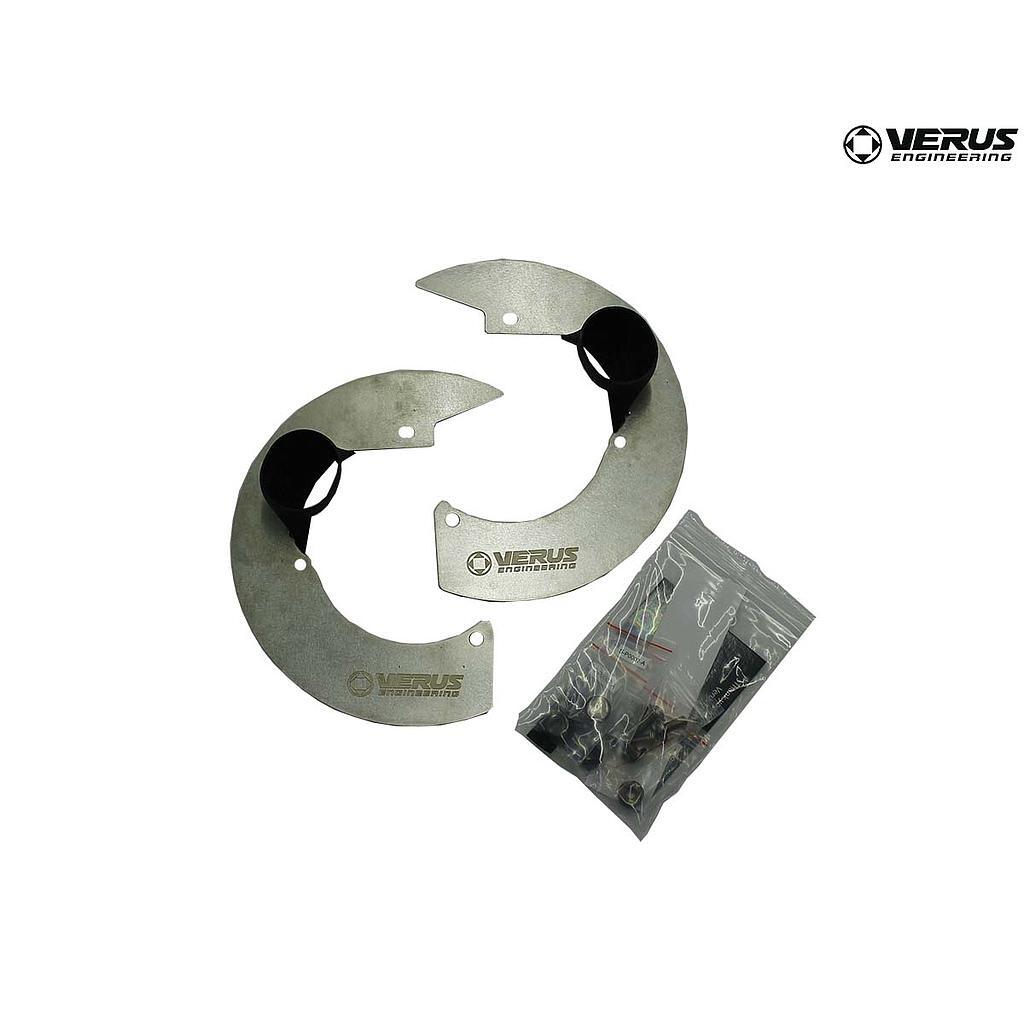

The Verus Engineering Backing Plate kit is constructed from a stainless backing plate for durability and a properly formed and located dry carbon duct that directs air into the center of the rotor. This is a great start to a do it yourself brake cooling kit for FRS/BRZ/GT86s.

Increase endurance, life expectancy, resistance to brake fade, and resistance to boiling brake fluid by hooking up a 2.5" silicone brake hose to these backing plates and running cool air through the rotors.

The backing plates are designed to work with OEM and aftermarket big brake kits, this is a must for those looking to get the most from their brakes. Stainless hardware throughout and hard anodized aluminum spacers ensure the kit will remain rust-free for the life of the units.

Note: In some severe cases the backing plate may need to be trimmed. IE: AP sprint kit with Whiteline roll center adjusters. The lower control arm to rotor clearance is less than the thickness of the backing plate. The AP Sprint BBK will fit without trimming on factory ball joints.

WHAT IS INCLUDED

• Backing Plate with Carbon Duct, Right-Hand Side
• Backing Plate with Carbon Duct, Right-Hand Side
• Hardware Kit, Includes All Necessary Hardware for a Seamless Install

INSTALL AND DATA

INFORMATIVE PACKET

PDF LINK

INSTALL MANUAL

PDF LINK
