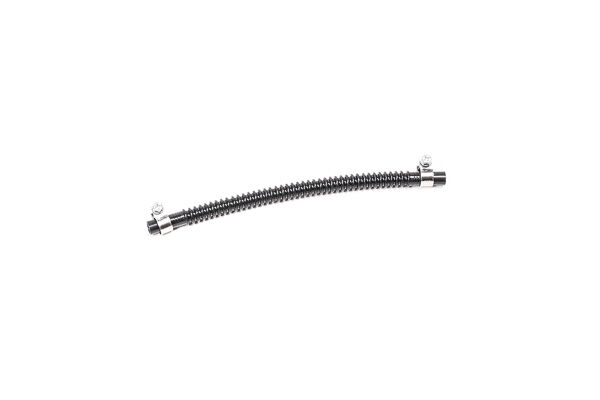

These fuel tubing kits are commonly used for plumbing in-tank submerged fuel pumps. The flexible convoluted tubing is manufactured from polyamide nylon and is therefore resistant to all fuel types including alcohol blends such as E85 and suitable for EFI fuel pressure.

There are 2 inner diameter sizes available including 5/16" (8mm) and 3/8" (10mm). When installing, run hot water over the ends first to loosen the material. This allows the tubing to fit snugly over the barb. Next, torque the reuseable stainless steel SAE J1508 clamps to 13.3 in-lbs. These clamps provide a 360 degree seal with rolled edges to protect the tubing.

RADIUM P/N: 20-0875 is compatible with the following.

  • Walbro GSS341 255LPH Fuel Pump
  • Walbro GSS342 255LPH Fuel Pump
  • AEM 50-1000 Gas Fuel Pump
  • AEM 50-1200 E85 Fuel Pump
  • AEM 50-1220 E85 Fuel Pump
  • Aeromotive 340R 11141 Fuel Pump
  • Aeromotive 340R 11142 Fuel Pump
  • Deatschwerks 9-301-1000 Fuel Pump

Includes:

  • PA Nylon Convoluted Tubing
  • Stainless Steel EFI Tube Clamps (x2)

Testing:

These tubes have been tested at Radium Engineering.

  • Working Pressure: 300psi
  • Burst Pressure: 450psi
SKU 20-0875
Brand Radium
